RIGID Led Light Metal Core Printed Circuit Board PCB Countersink IPC Class 3

Name: RIGID Led Light Metal Core Printed Circuit Board PCB Countersink IPC Class 3
Brand: Shenzhen Tecircuit Electronics Limited
SKU: TEC0017
Price: 5.99 USD
Availability: InStock

Brand Name:	TECircuit
Model Number:	TEC0017
MOQ:	1pcs
Price:	USD 1.99 ~ USD9.99/pcs

Detail Information

Product Description

Detail Information

Certification:

UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Item No.:

R0015

Brand:

Shenzhen Tecircuit Electronics Co., Ltd

Product Type:

PCB,RIGID PCB,printed Circuit Board,Rigid Board,Flexible Board,Rigid-Flex PCB,IC-Substrate,Metal Core

Packaging Details:

Vacuum package+Carton box

Supply Ability:

50000 pcs/month

Highlight:

IPC Class 3 Led Light PCB

Metal Core Led Light PCB Board

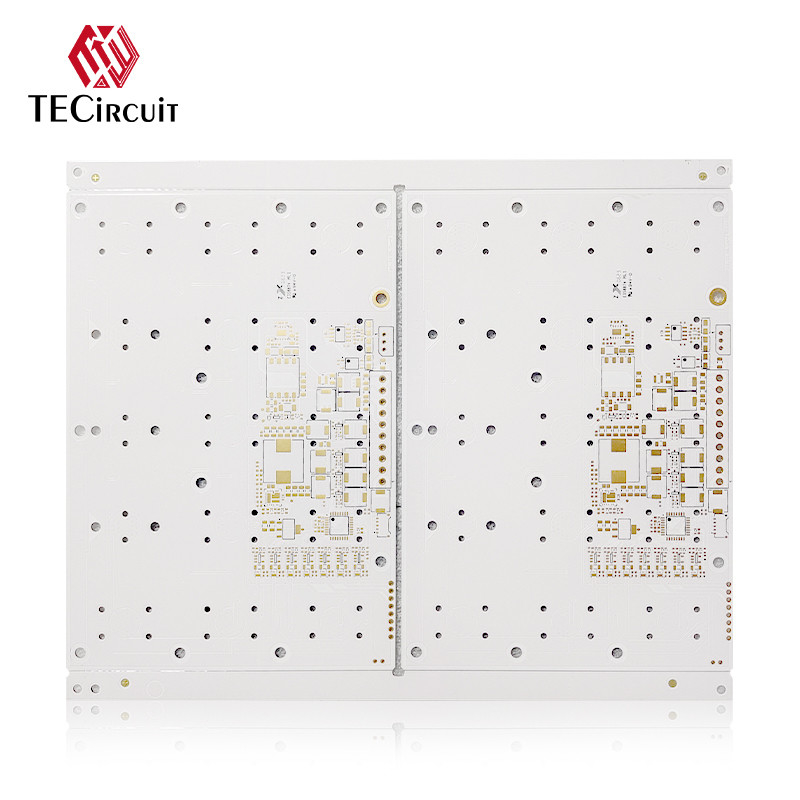

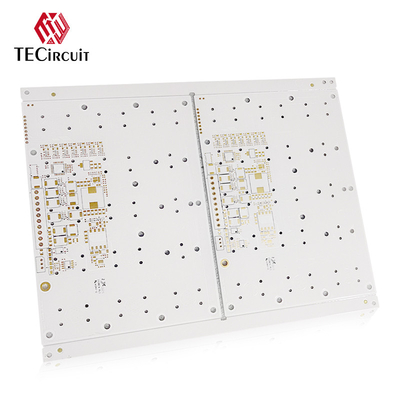

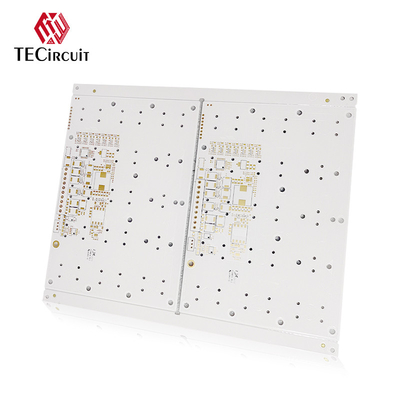

Product Description

Layer Count:1
Material:AL 1W
Thickness:1.6mm
Copper Thickness:1oz
Dimension:180 *341 mm /2ups
Surface Finish:Immersion Gold 2u”
Special Feature:Surface Tension >=32mN/m
Countersink,IPC Class 3
