Aluminum Core PCB RIGID 1 Layer Printed Circuit Board For PAD Electronics

Name: Aluminum Core PCB RIGID 1 Layer Printed Circuit Board For PAD Electronics
Brand: Shenzhen Tecircuit Electronics Limited
SKU: TEC0014
Price: 5.99 USD
Availability: InStock

Brand Name:	TECircuit
Model Number:	TEC0014
MOQ:	1pcs
Price:	USD 1.99 ~ USD9.99/pcs
Delivery Time:	5-15 wotk days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Item No.:

R0013

Brand:

Shenzhen Tecircuit Electronics Co., Ltd

Product Type:

PCB,RIGID PCB,printed Circuit Board,Rigid Board,Flexible Board,Rigid-Flex PCB,IC-Substrate,Metal Core

Service:

One-stop PCBA Service

Packaging Details:

Vacuum package+Carton box

Supply Ability:

50000 pcs/month

Highlight:

PAD Electronics Aluminum Core PCB

Aluminum 1 Layer Printed Circuit Board

Product Description

Application:Mini Lighting
Layer Count:1
Material:AL
Thickness:1.0mm
Dimension:423*368
Surface Treatment:OSP
Special Feature:Tolerance of PAD +/-0.02mm

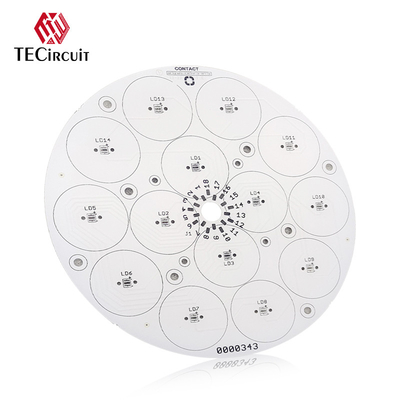

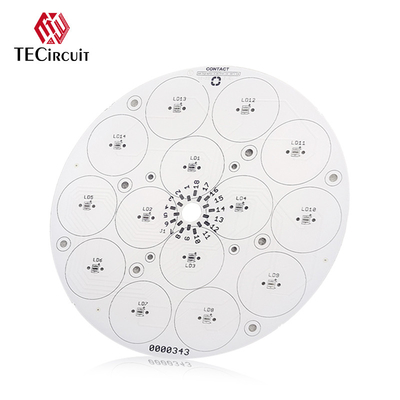

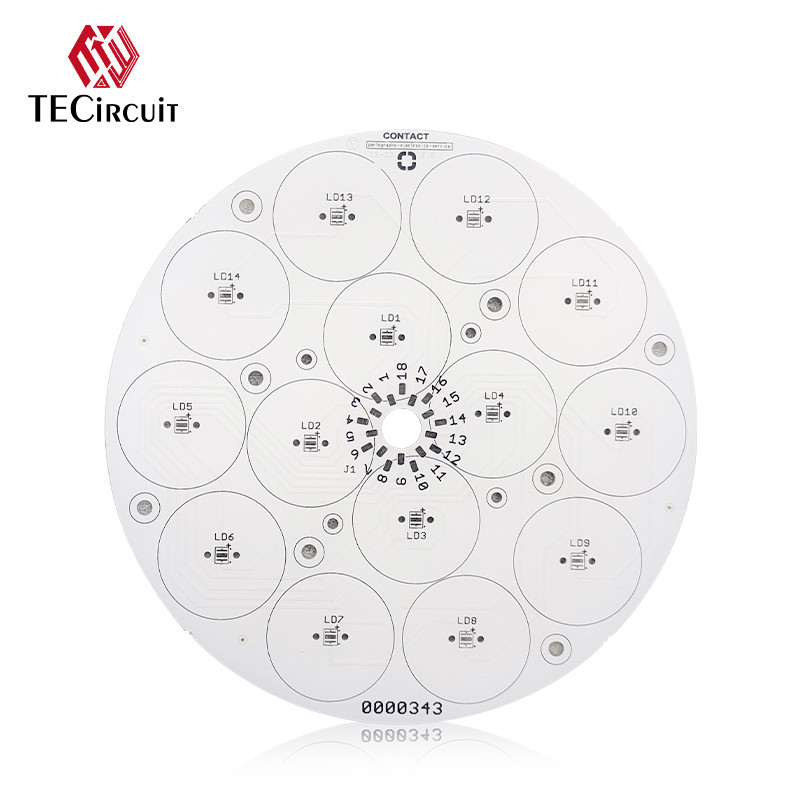

Product Images

About TECircuit

TECircuit Electronic group is an electronics manufacturing service (EMS) provider. Over the past 10+ years, we have gained extensive experience in the area of manufacturing and assembling PCB’s, allowing us to establish ourselves as a reputable tech company both at home and abroad. Having completed thousands of orders for thousands of customers, we have comprehensive knowledge on how to properly produce high quality PCB’s for nearly every industry that uses them, including Industrial, Automotive, Agricultural, Defense, Aerospace, Medical, Security, Do it Yourself (DIY), etc.

Aluminum Core PCB RIGID 1 Layer Printed Circuit Board For PAD Electronics 1

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
