RIGID 2 Layer PCB Aluminum Led Light PCB Board Led Metal Core Pcb Manufacturer

Name: RIGID 2 Layer PCB Aluminum Led Light PCB Board Led Metal Core Pcb Manufacturer
Brand: Shenzhen Tecircuit Electronics Limited
SKU: TEC0024
Price: 5.99 USD
Availability: InStock

Brand Name:	TECircuit
Model Number:	TEC0024
MOQ:	1pcs
Price:	USD 1.99 ~ USD9.99/pcs
Delivery Time:	5-15 wotk days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Brand:

Shenzhen Tecircuit Electronics Co., Ltd

Product Type:

PCB,High Frequency Board,RIGID PCB,Rigid Board,Flexible Board,Rigid-Flex PCB,IC-Substrate,Metal Core

Item No.:

R0017

Service:

PCBA Service

Packaging Details:

Vacuum package+Carton box

Supply Ability:

50000 pcs/month

Highlight:

RIGID Led 2 Layer PCB

Led Light 2 Layer PCB Board

Led Metal Core Pcb Manufacturer

Product Description

Layer		1L
Material		AL 1W
Board Thickness		1.6 MM
Copper Thickness		1oz
Surface treatment		Immersion Gold 2U"
Special Feature		Large area immersed in gold

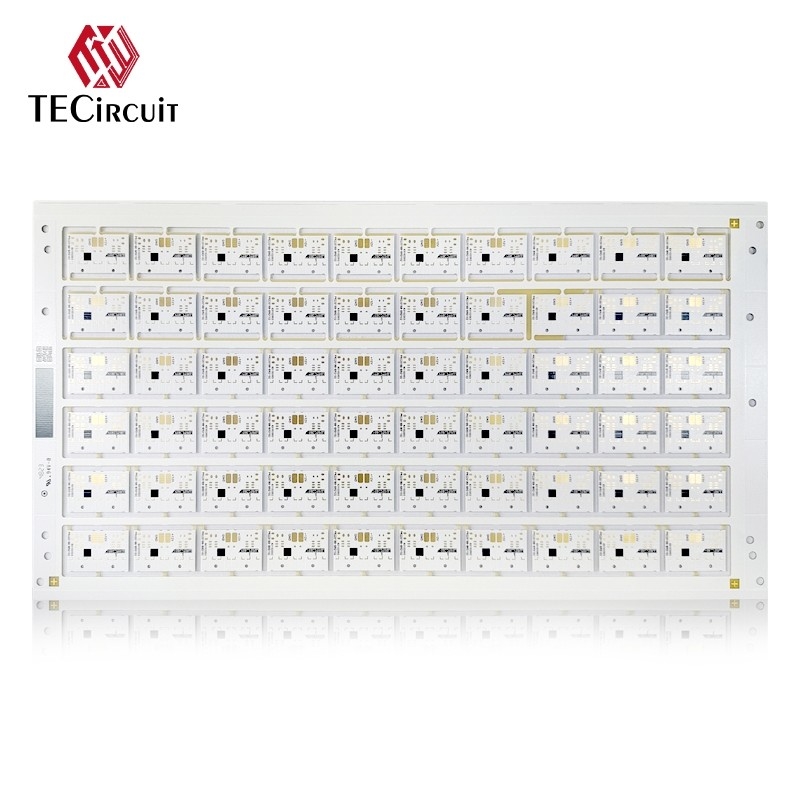

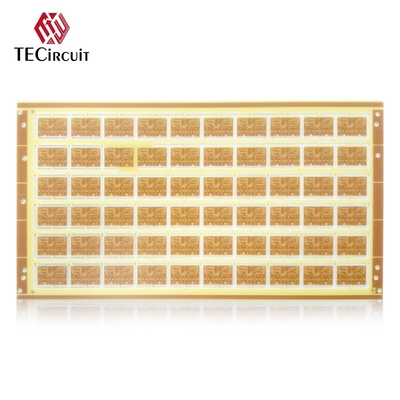

Product Images

About TECircuit
Found: TECircuit has been operating since 2004.
Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.
Item: Customizable EMS PCB, offers a full range of one-stop shop services.
Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.
Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.
Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

RIGID 2 Layer PCB Aluminum Led Light PCB Board Led Metal Core Pcb Manufacturer 2

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
