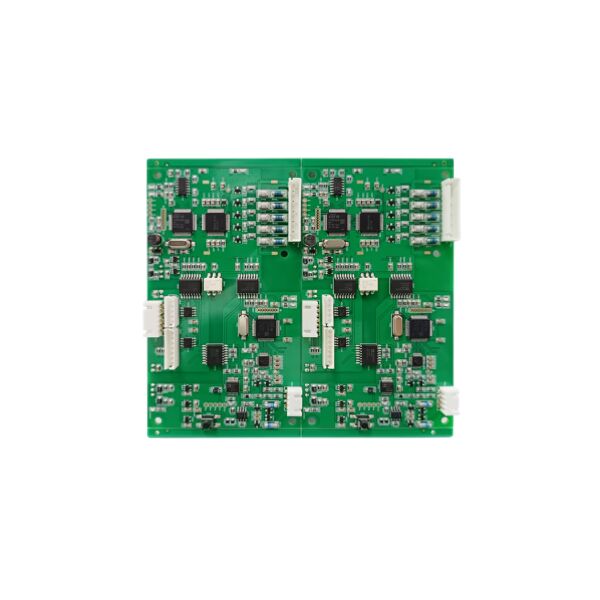

PCBA Consumer Electronics Portable Embroidery Machine Printed Circuit Board Assembly

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• On‑Site Custom Apparel: Embroiders names or logos at events.

• Small Batch Production: Runs short runs of patches and bags.

• Home Crafting: Creates decorative stitches on quilts and towels.

• Pop‑Up Shop Customization: Personalizes hats or jackets instantly.

• Classroom STEM Projects: Teaches design‑to‑stitch workflow.

• Traveling Artisan Use: Lightweight for craft fairs and markets.

• Emergency Uniform Repair: Adds badges to workwear in the field.

PCBA Features

1. Stepper Motor Drivers: Controls X‑Y pantograph and Z‑axis needle.

2. Microcontroller (MCU) : Interprets DST/PES embroidery files.

3. USB & SD Card Interface: Loads designs without a computer.

4. Tension Sensor: Detects thread break or bobbin empty.

5. Color‑Coded LCD Driver: Shows current stitch color and progress.

6. Low‑Power DC Motors: Runs on battery or 12V car adapter.

7. Foldable Frame Mount: Accommodates hoops up to 4”×4”.

8. Emergency Stop Input: Halts needle immediately for safety.

9. Foot Pedal Port: Enables hands‑free start/stop.

10. Thread Cutter Solenoid: Auto‑trims after color change.
