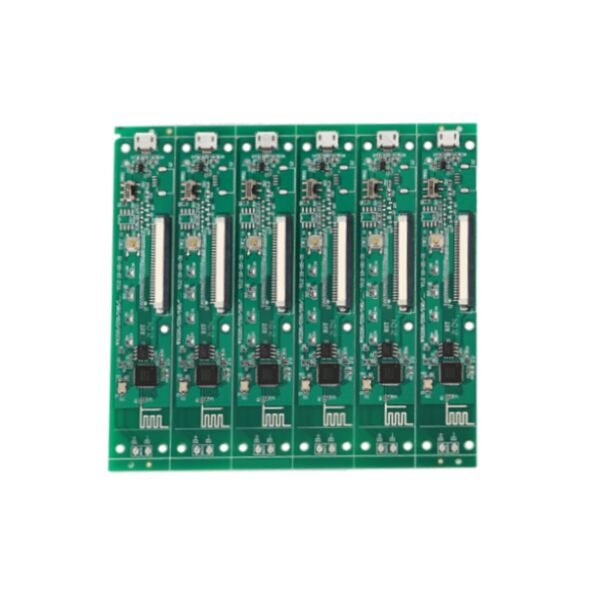

PCBA Consumer Electronics Smart Telescope SMT Printed Circuit Board Assembly

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Automated Celestial Tracking: Finds and follows stars, planets, and satellites.

• Astrophotography Control: Captures long-exposure images of deep-sky objects.

• Go-To Mount Navigation: Points telescope to selected celestial coordinates automatically.

• Stargazing Assistance: Identifies constellations and planets in real-time.

• Remote Observatory Operation: Controls telescope from indoors or mobile devices.

• Educational Sky Tours: Provides guided explanations of visible objects.

• Light Pollution Mitigation: Adjusts imaging settings for urban viewing.

PCBA Features

1. Stepper Motor Drivers: Controls dual-axis movement for precise tracking.

2. GPS Module: Determines location and time for accurate alignment.

3. Compass and Accelerometer: Assists initial calibration and leveling.

4. Camera Interface: Connects to CMOS sensors for live viewing.

5. Microcontroller Unit: Processes alignment algorithms and tracking commands.

6. Wi-Fi/Bluetooth Module: Enables smartphone control and image transfer.

7. Real-Time Clock: Maintains sidereal time for astronomical calculations.

8. Power Management: Supports battery or solar operation for field use.

9. USB Host Port: Connects additional cameras or focus motors.

10. Firmware Storage: Holds celestial databases and updateable star catalogs.

FAQ

​PCB & PCBA  Description​
