PCBA Consumer Electronics Laser Engraver SMT Printed Circuit Board Assembly

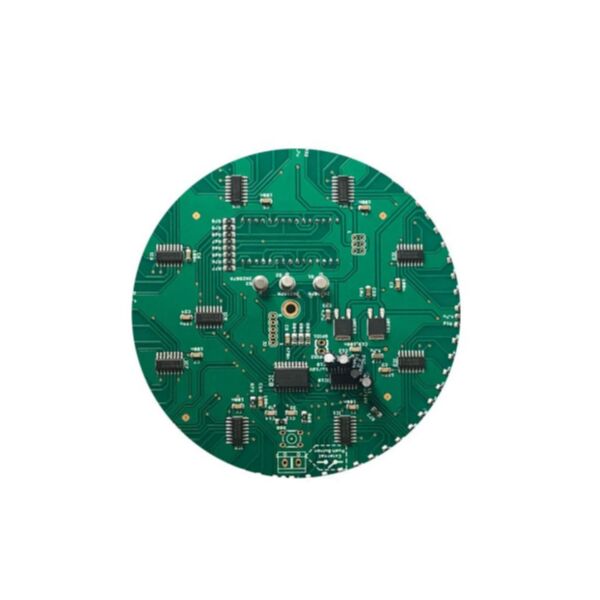

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Precision Design and Prototyping Visualization: The PCBA processes real-time engraving paths and overlays digital design schematics directly onto the workpiece, allowing designers and engineers to preview engraving results before execution, reducing material waste and enabling rapid design iteration .

• Industrial Marking and Traceability Assistance: Deployed in manufacturing environments, the PCBA runs applications that project QR codes, serial numbers, or production data onto components, guiding operators to exact marking positions while simultaneously recording completion data for quality assurance .

• Educational and Vocational Training: Powers AR-guided laser engraving instruction for students learning materials processing. The PCBA overlays safety zones, operational parameters, and step-by-step procedure guides onto the work surface, accelerating skill acquisition while maintaining safety protocols .

• Artistic Creation and Customization Workflows: Enables artists and craftspeople to visualize complex engraving patterns on three-dimensional objects before committing to laser processing. The PCBA manages real-time preview rendering and integrates with design software for seamless creative workflows .

• Remote Expert Guidance for Field Operations: Supports tele-assistance scenarios where remote specialists can annotate engraving parameters, mark positions, or adjust designs in real-time on the operator's AR display, facilitating complex on-site customization tasks .

• Quality Control and Verification: Assists quality inspectors by overlaying expected engraving results onto finished products, enabling rapid visual comparison and dimensional verification against CAD specifications.

PCBA Features

1. High-Performance System-on-Chip (SoC) with Dedicated NPU: The PCBA integrates a powerful SoC with Neural Processing Unit to simultaneously handle laser path calculations, computer vision for workpiece recognition, and AR graphics rendering while maintaining sub-millimeter precision and minimal latency .

2. Laser Control and Safety Interlock Circuitry: Features dedicated microcontroller-based laser driver circuits with multiple redundant safety interlocks. The PCBA continuously monitors lid position sensors, motion detectors, and emergency stops, immediately cutting laser power if safety parameters are violated .

3. Miniature Display Driver and Waveguide Controller: Incorporates specialized display drivers for high-brightness micro-OLED or MicroLED projectors coupled with optical waveguide systems, ensuring engraved design overlays remain clearly visible even under ambient workshop lighting conditions .

4. Multi-Sensor Fusion for Spatial Registration: Integrates interfaces for high-resolution workpiece cameras, depth sensors, and IMUs, fusing this data to achieve precise alignment between virtual engraving designs and physical objects regardless of surface curvature or orientation .

5. Real-Time Galvanometer and Motion Control Interface: Includes high-speed digital-to-analog converters and dedicated motion control processors that communicate directly with the engraving system's galvanometer scanners, ensuring perfect synchronization between what the user sees and where the laser actually engraves .

6. Multi-Mode Connectivity (Wi-Fi 6/7, Bluetooth 5.x): Features advanced wireless modules for high-bandwidth communication with design workstations, cloud-based pattern libraries, and remote collaboration platforms, supporting seamless data transfer of complex vector and raster engraving files .

7. Advanced Power Management IC (PMIC) with Thermal Monitoring: Employs a sophisticated PMIC and Battery Management System to balance the high power demands of laser operation with the continuous processing requirements of AR graphics, incorporating thermal sensors that dynamically adjust performance to prevent overheating during extended use .

8. Rigid-Flex HDI Construction: The PCBA utilizes rigid-flex high-density interconnect technology with ultra-fine line widths and multiple layers, allowing the complex electronics to fit within the compact, ergonomic form factor required for comfortable extended wear during engraving operations.
