PCBA Consumer Electronics Drawing Glove SMT Printed Circuit Board Assembly

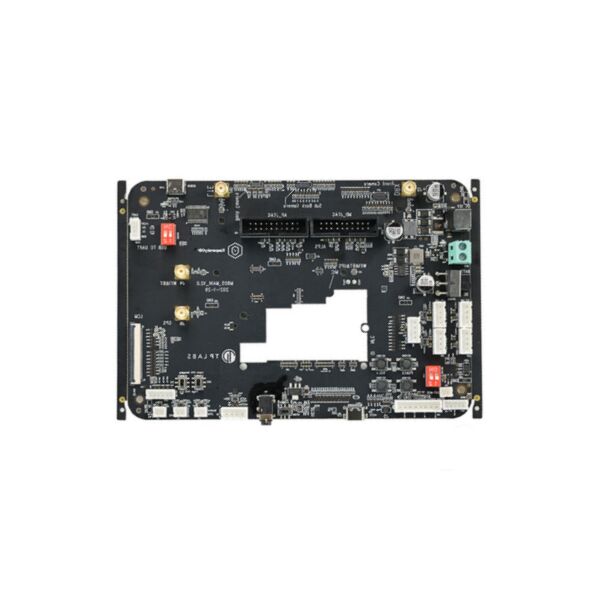

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Advanced Digital Art and 3D Sculpting: The PCBA processes data from finger bend and hand orientation sensors, allowing artists to manipulate digital brushes, sculpt 3D clay, or navigate canvases with natural hand movements, adding a new dimension to creative workflow.

• Virtual and Augmented Reality Interaction: Serves as a precise input device for VR/AR environments, enabling users to grab, push, or interact with virtual objects intuitively. The PCBA translates subtle finger motions into real-time digital commands, enhancing immersion.

• Sign Language Translation and Communication: The system can capture the complex gestures of sign language through its sensor array. The onboard or connected processor can translate these gestures into text or speech in real time, acting as a communication bridge.

• Robotic Teleoperation and Precision Control: Used to control robotic arms, drones, or prosthetic hands with high dexterity. The PCBA transmits the operator's hand kinematics accurately, allowing for remote performance of delicate tasks.

• Medical Rehabilitation and Physical Therapy: Monitors and quantifies the range of motion in a patient's hand and fingers during rehabilitation exercises. Therapists can use the data from the PCBA to track progress and adjust treatment plans objectively.

• Musical Instrument and Digital Interface Control: Allows musicians to map specific hand gestures or finger positions to sounds, effects, or parameters in digital audio workstations, creating new forms of expressive electronic musical instruments.

PCBA Features

1. Multi-Sensor Fusion Hub: The PCBA integrates and manages data from a suite of sensors, including flex sensors or inertial measurement units (IMUs) on each finger to measure bend, and a central 9-DoF IMU (accelerometer, gyroscope, magnetometer) to track overall hand orientation and movement in space.

2. High-Speed Microcontroller Unit (MCU) or SoC: At its heart is a powerful, low-power MCU or System-on-Chip that samples all sensor data at high rates, performs initial filtering and sensor fusion algorithms, and packages the data for transmission with minimal latency.

3. Multi-Mode Connectivity (Bluetooth LE, RF, USB): The board is equipped with Bluetooth Low Energy (BLE) for wireless connection to PCs, tablets, or smartphones. Some professional models may use proprietary low-latency RF or a direct USB-C connection for studio use.

4. Advanced Power Management IC (PMIC): Employs a sophisticated PMIC to manage power from a compact, rechargeable lithium-ion battery. It optimizes consumption across sensors, the processor, and the radio, ensuring several hours of continuous use on a single charge.

5. Haptic Feedback Driver Circuitry: Some advanced PCBA designs include drivers for haptic feedback motors (eccentric rotating mass or linear resonant actuators) in the glove's fingertips or palm, providing tactile confirmation of virtual interactions.

6. Firmware-Based Gesture Library and Calibration: The PCBA's firmware stores calibration routines for individual user hand sizes and a library of pre-programmed gestures. The MCU runs pattern-matching algorithms to recognize these gestures from the raw sensor data stream.
