Created with Pixso. HDI High Frequency Board RIGID PCB FR4 TG150 S1150G Min Hole Size 0.1mm

HDI High Frequency Board RIGID PCB FR4 TG150 S1150G Min Hole Size 0.1mm

Brand Name: TECircuit
Model Number: TEC00010
MOQ: 1pcs for sample, 100pcs for bulk
Price: USD 1.99 ~ USD9.99/pcs
Delivery Time: 5-15 wotk days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Brand:
Shenzhen Tecircuit Electronics Co., Ltd
Product Type:
HDI,High Frequency Board,RIGID PCB,Rigid Board,Flexible Board,Rigid-Flex PCB,IC-Substrate,Metal Core
Services:
PCBA Service
Item No.:
R0009
Packaging Details:
Vacuum package+Carton box
Supply Ability:
50000 pcs/month
Highlight:

FR4 HDI High Frequency Board

,

0.1mm HDI High Frequency Board

,

S1150G Hdi Printed Circuit Board

Product Description

Product Description

Layer Count:6L 1Step HDI
Material:FR-4,TG150,S1150G
Thickness:0.8mm
Min.Hole Size:0.1mm
Dimension:92.79* 132.6
Surface Finish:Immersion Gold 2u+ OSP
Min Line Width:2.5 Mil
Min Line Spacing:2.5 Mil
Special Feature:HDI
Product Image

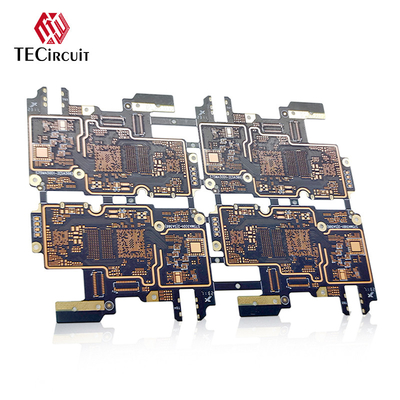

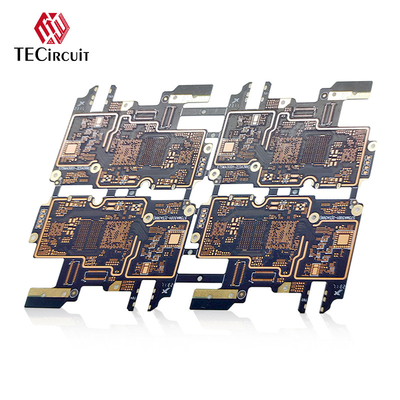

HDI High Frequency Board RIGID PCB FR4 TG150 S1150G Min Hole Size 0.1mm 0HDI High Frequency Board RIGID PCB FR4 TG150 S1150G Min Hole Size 0.1mm 1

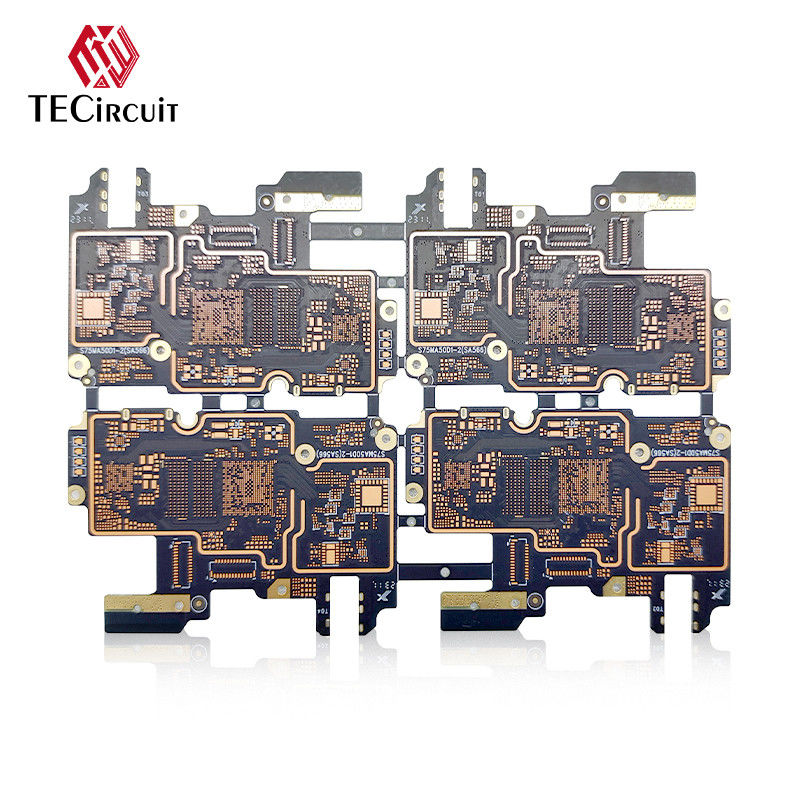

HDI High Frequency Board RIGID PCB FR4 TG150 S1150G Min Hole Size 0.1mm 2



About TECircuit Electronic Co.,Ltd

TECircuit founded in 2004, is a proficient PCB&PCBA manufacturer as a National High-Tech Enterprise.Based on our PCB factory in Huizhou city, Guangdong, we produce 1-40L PCB precisely and densely. Along with our8 SMT lines, we are remarkable in PCBA among vast territory. Focus on domestic and overseasour products have been promoted to over 30 countries and areas, and accumulated rich experience invarious industries including but not limited to Telecommunication, 5G, loT, Medical, Industrial Control.Automotive.Instrumentation. aviation and defence.To be reliable and high-quality, we have passed UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH. We are eager toinnovate and have acquired more than 20 patentsThinking at our partners side, we devote ourselves into one-stop service in PCB Manufacturing, PCB Assembly, Components Sourcing for 16 years.
